Model comparison
Put the working numbers side by side.
Use the comparison as a starting point. Final engine, mast and attachment compatibility is confirmed before quotation.
Models in comparison

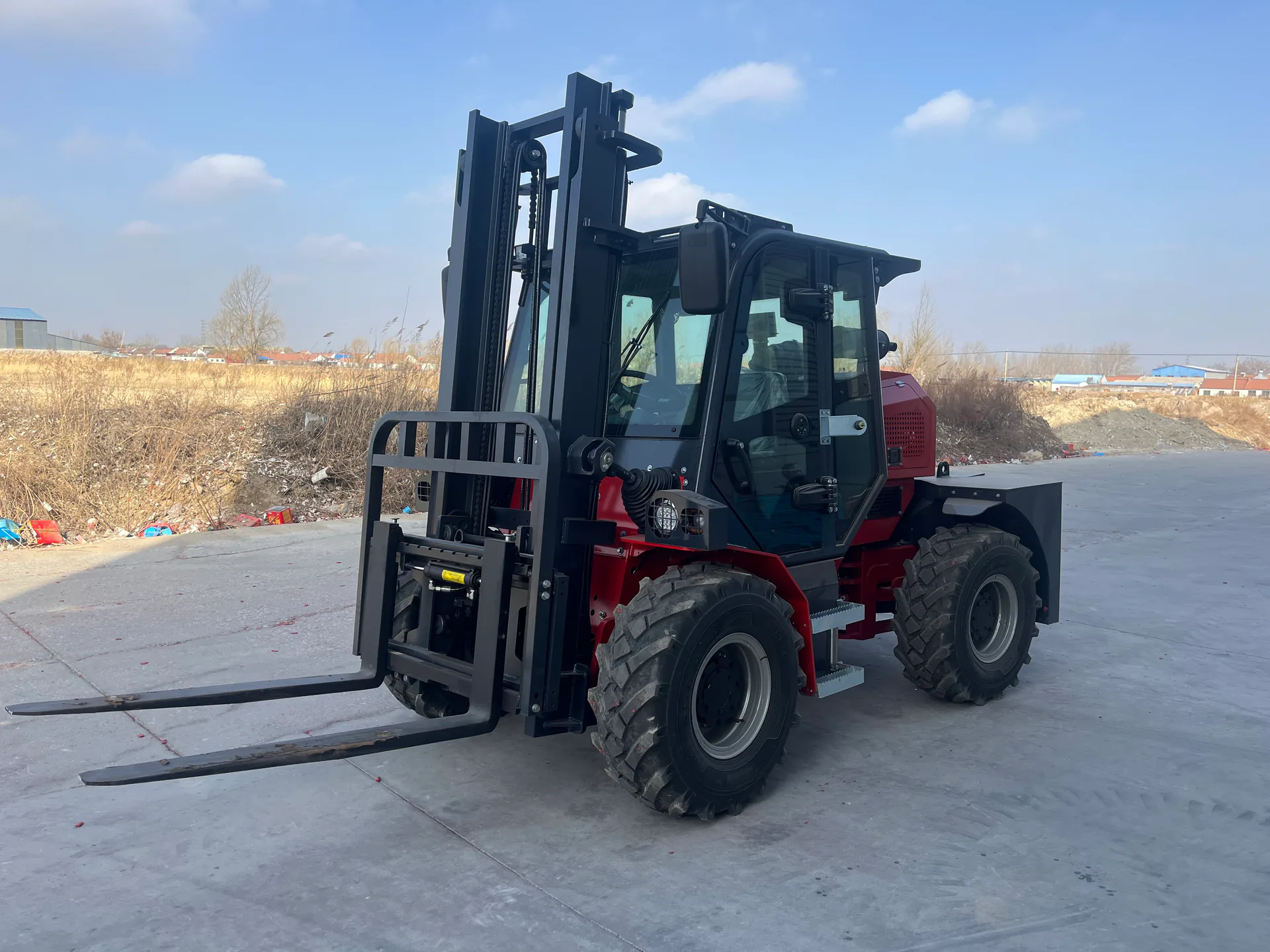

New 3.5TOpen model

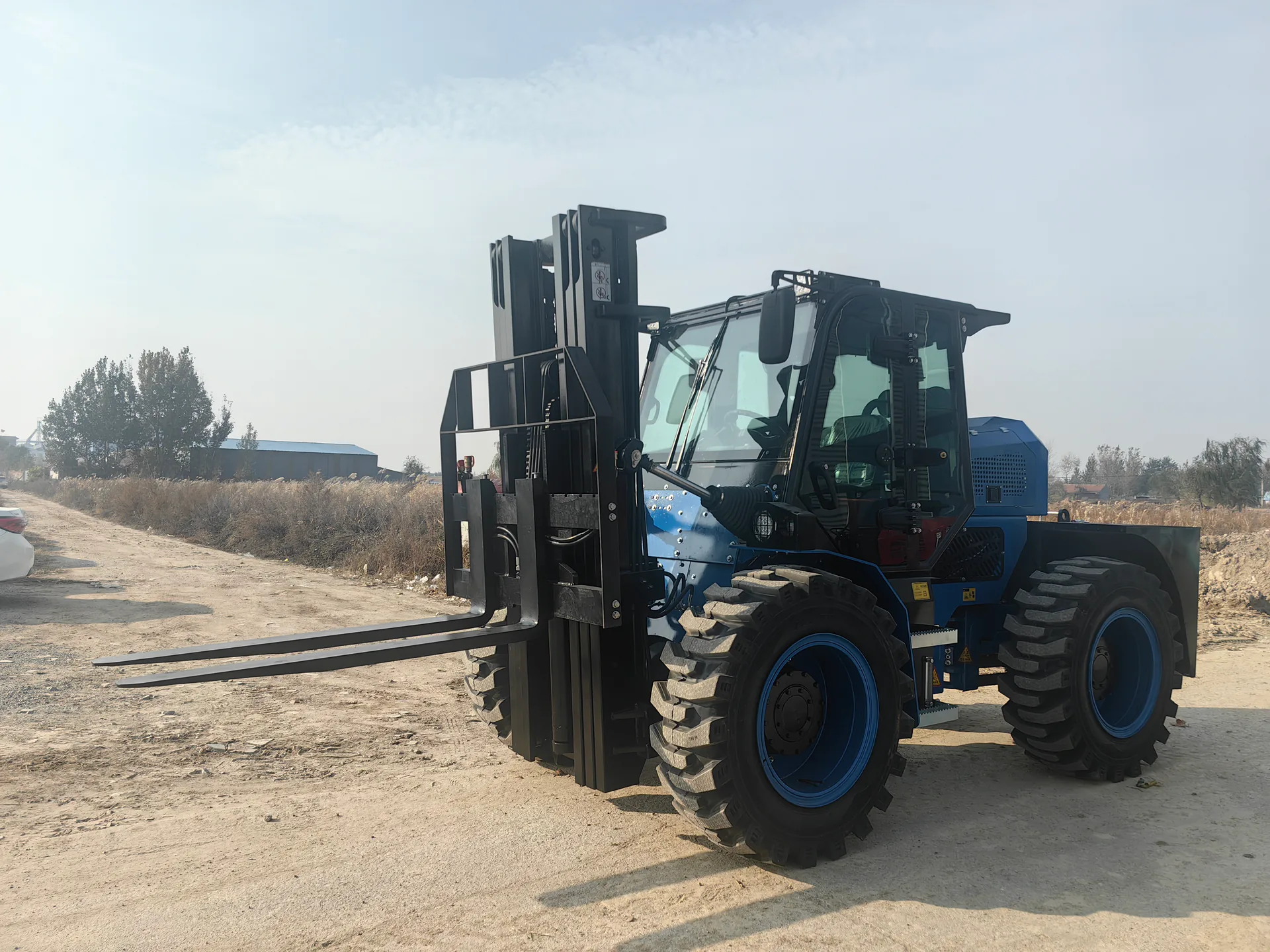

New 5TOpen model

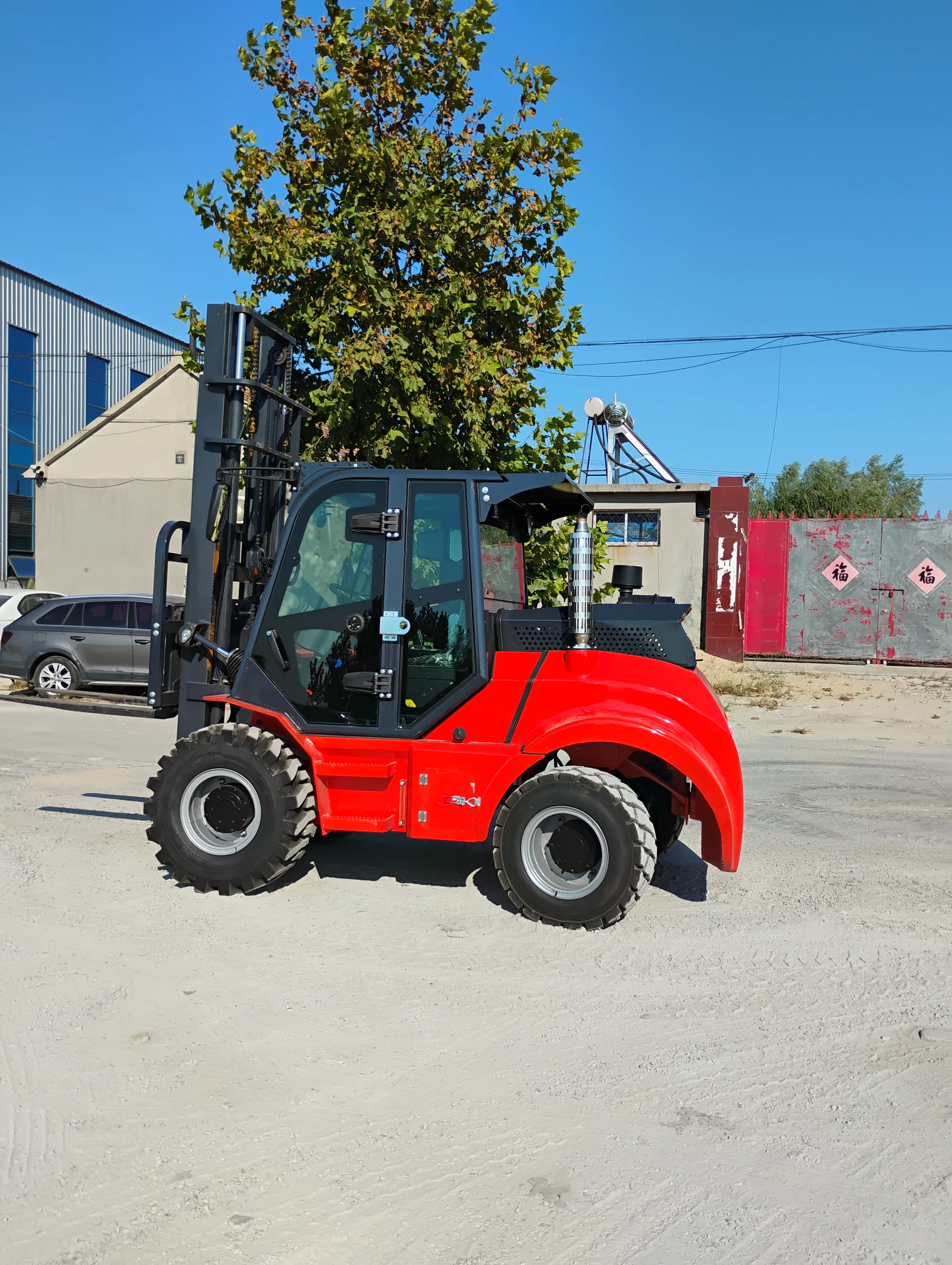

Integrated 3.5TOpen model

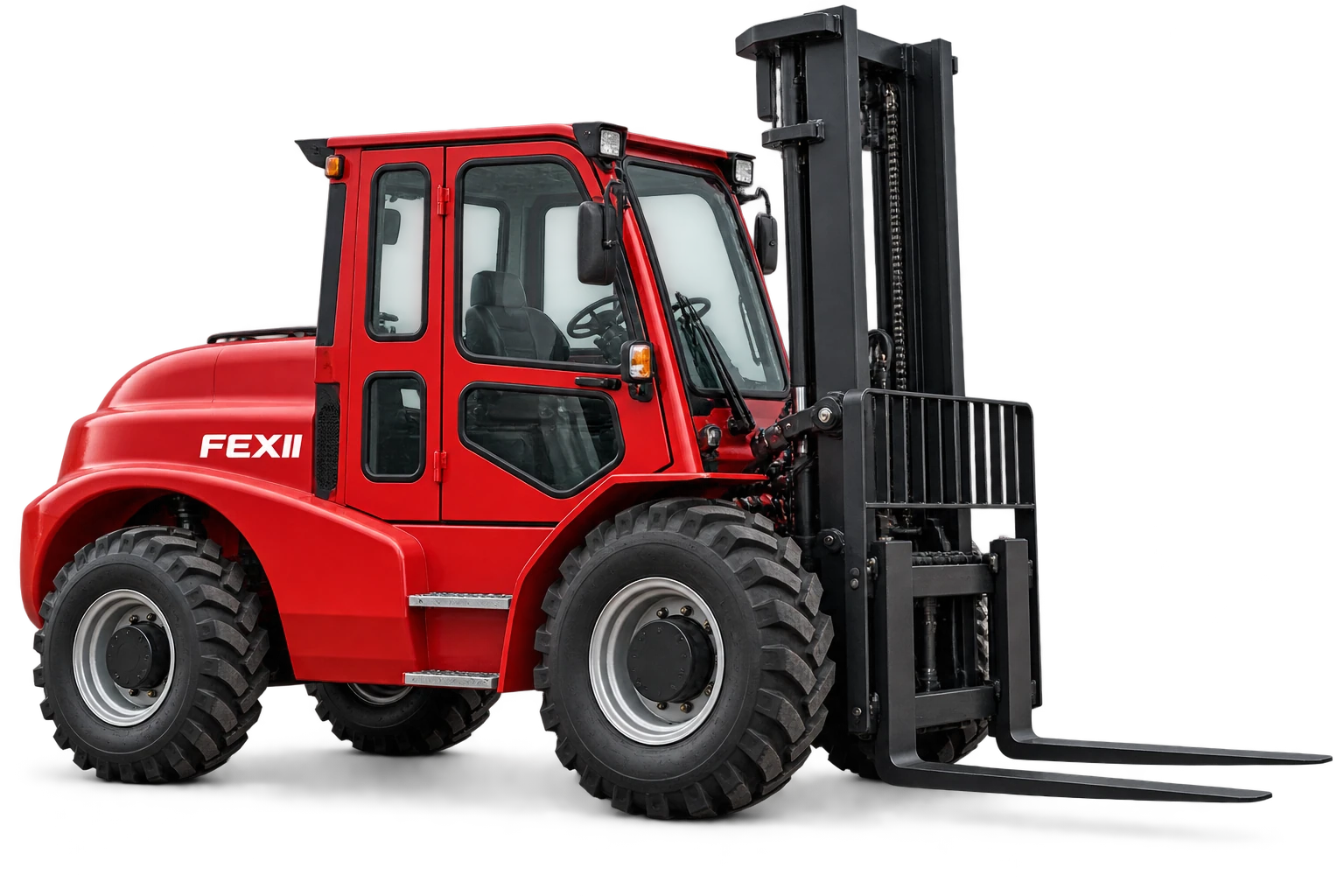

Integrated 5TOpen modelRated load
3,500 kg
5,000 kg
3,500 kg
5,000 kg
Load centre
500 mm
500 mm
500 mm
500 mm
Standard lift height
3,000 mm
3,000 mm
3,000 mm
3,000 mm
Overall length without forks
3,400 mm
3,800 mm
3,180 mm
4,000 mm
Overall width
1,800 mm
2,100 mm
1,600 mm
1,800 mm
Wheelbase
2,050 mm
2,280 mm
1,900 mm
2,200 mm
Minimum ground clearance
260 mm
260 mm
250 mm
260 mm
Outside turning radius
3,200 mm
4,600 mm
2,100 mm
2,250 mm
Operating weight
4,900 kg
7,000 kg
5,320 kg
6,500 kg
Tyre type
Pneumatic
Pneumatic
Semi-solid
Technical confirmation required · source PDF lists pneumatic while axle entries list semi-solid
Engine
Weifang 490 · optional engine configurations available
Weifang 4102 · optional engine configurations available
Yunnei 490 turbocharged · optional engine configurations available
Yunnei 4102 turbocharged · optional engine configurations available
Engine power
42 kW
78 kW
58 kW
81 kW
